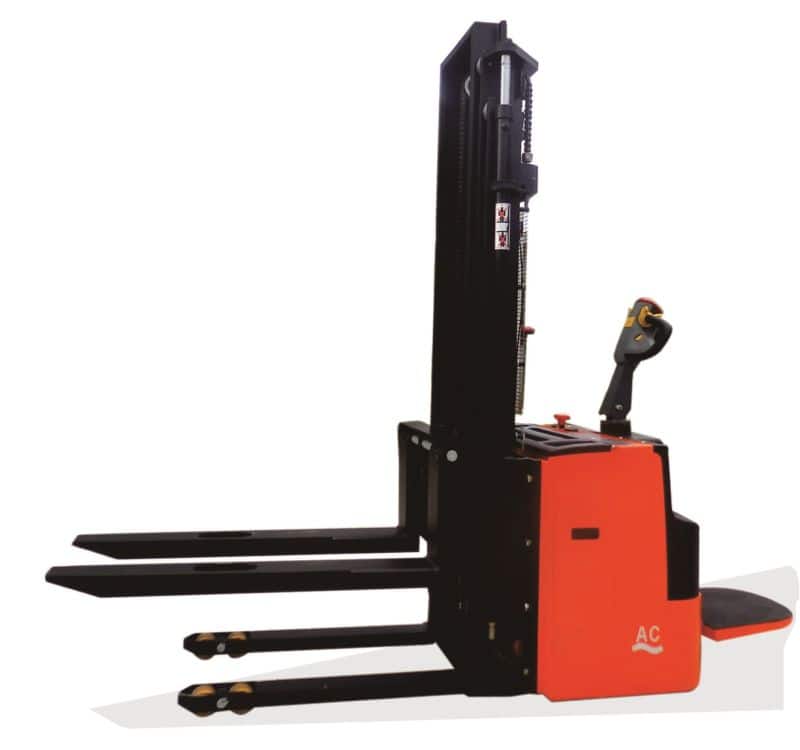

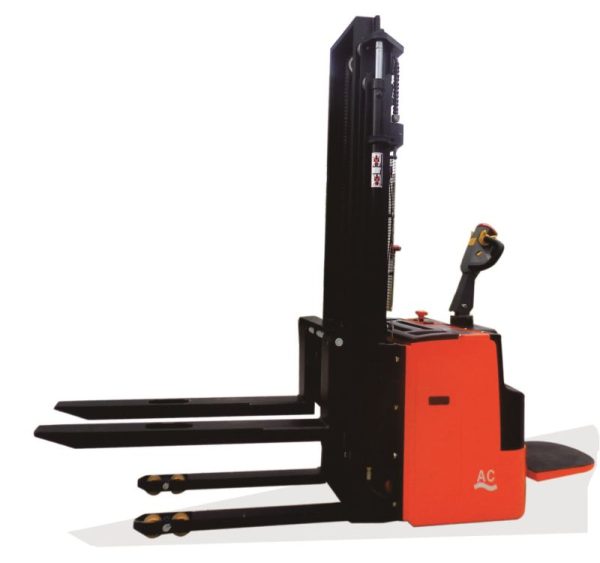

| MODELO | Unit | CTQ15/40-N |
| Drive unit | Electric | |
| Load Capacity | Kg | 1500 |
| Load center | mm | 500 |
| Mast | Triple Mast | |
| Brake way | Rebirth system moves + Electric at butterfly release | |
| Tyre type | Polyurethane | |
| Front tyre dimensions | mm | φ80×60 |
| Rear tyre dimensions | mm | φ130×55 |
| Traction wheel | mm | φ230×75 |
| Wheels | 1x-4/2 | |
| front/rear(x=traction) | ||

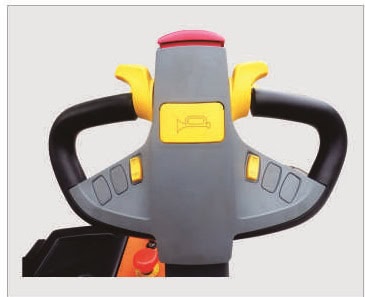

| Travel position tiller height | mm | 1050 |
| Lift height h3 | mm | 4500 |
| Closed height h1 | mm | 2060 |
| Forks clearance h13 | mm | 85～90 |
| Fork dimensions | S/L1/E | 1150×160×65 |
| Total length l1 | mm | 2620/2230 |
| Total width b1 | mm | 850 |
| Maximum forks width b5 | mm | 680 |
| Forks inside width | mm | 360 |
| Min turning radius | mm | R1760 |
| Min turning radius | mm | R2160 |
| (Open pedal) | ||
| Aisle width for pallets | AST mm | 2550/2900(open pedal) |
| (1000X1000mm) | ||
| Aisle width for pallets | mm | 2680/3030(open pedal) |
| (1200x1000mm) | ||
| Lifting speed (lade/unlade) | mm/s | 130/70 |
| Lowering speed(lade/unlade) | mm/s | ≤500 |
| Traction speed(lade/unlade) | Km/h | 06-may |
| Maximum grade ability | ％ | 15/6 |
| (lade/unlade) | ||
| Truck weight | Kg | 870 |
| (without battery) | ||
| Battery weight(±5％) | Kg | 210 |
| control system | AC-Speed Control | |
| Traction motor | KW | 1.5 |
| Lift motor | KW | 2.2 |
| Battery | V/Ah | 2V×12/240 |
| Battery Charger (Input) | AC V/Hz | 220V/50(60)HZ |
| Battery Charger (Input) | DC V/A | 24V/30A |
